آلة الرمجة الرقمية متدفة البيانات على ورق

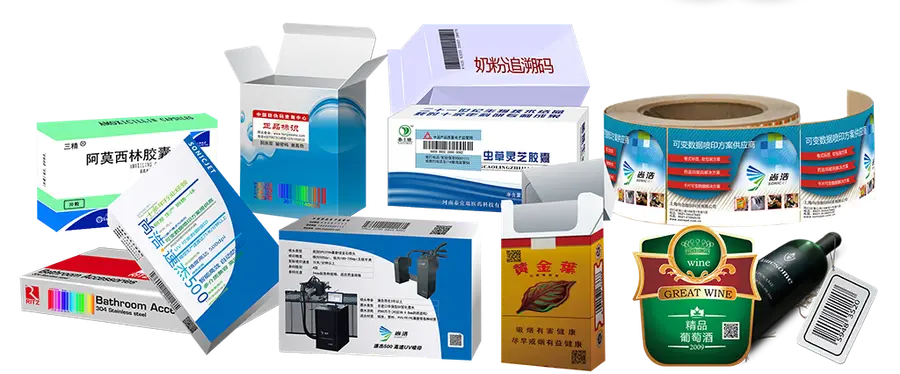

آلة الرمجة الرقمية متدفة البيانات على ورق هي معدات احترافية لت printing متغيرات المعلومات مثل بارcodes و two-dimensional codes على a single sheet of paper. Variable types of coding can be realized on the machine to perform variable information printing. This series adopts a more optimized modular design, and users can have more personalized choices. The equipment is widely used in various fields such as medicine packaging, food packaging, lottery tickets, tickets, bills, and card making.

Industrial-grade nozzle: It adopts Japaneseindustrial-grade nozzle piezoelectric nozzle, which has high speed,smooth, stable, long life and easy maintenance.

High print resolution: up to 600dpi*1200dpiresolution.

High-speed printing: printing speed of up to 200 m /min, print resolution of up to 600dpi * 400dpi production speed of 110 m /min.

أجهزة البرنامج لينة و سهل تشغيل: البرنامج البحث و تطوير, الواجهة الصينية/الإنجليزية, التصفنغ هو بسيط و سهل تعلم, التشغيل هو سريع, و النتائج هي مطبوعة.

Flexible typographic mode for seamless printing,printing and printing barcodes, variable data, date, time, batch number,pattern, serial number, variable Chinese, English, digital, 1D, 2D barcodein any printing area Anti-counterfeiting information.

Equipped with 2D barcode automatic generator,customers can choose bar code categories up to 14 categories, up to 100types.Support file formats: TIF,BMP, PNG, images, PDF files, 1D barcodes, QR codes. Special software andspecial supervision code can be customized according to customer needs.

مجهّز مع مولد تلقائي لل باركود ثنائي بعد، عميون يمكن اختار فئات باركود ما 14 فئات، ما 100 أنواع.

Support file formats: TIF,BMP, PNG, images, PDF files, 1D barcodes, QR codes. Special software andspecial supervision code can be customized according to customer needs.

دعم استيراد ما يصل إلى 30 ملايين بيانات في وقت واحد.

A) Automatic paper feeding department: Pre-stacking paper, using the printing machine to fly at high speed (speed up to 10,000 sheets/hour), the stacking paper can reach 3,000 sheets, and the whole machine speed control adopts the French Schneider (SCHNEIDER) inverter. The machine adopts PLC touch screen control (touch

The screen has a fault alarm record to view), the main control electrical appliances use the EU CE certification to import brand-name electric. Can be equipped with non-stop paper feeding function.

B) بالإضافة إلى قسم المسخى: الحازي ثنائية العبش يستخدم لل امتصاص عبر الفاكيوم، وإزالة المسخى من خلال الضغط الكهروستاتيكي يمكن فاعليفاً إزالة الغبار على السطحورق أثناء الطب، مما يقلحاحان احتمال انسداد الفسك بسبب الغبارورق أثناء عمل. فاعليفاً تحسين كفاءة العمل

C) Side gauge correction: oblique pull ball type correction. Positioning accuracy, accuracy is ±0.3MM

D) Coding platform: high-stability cast iron platform, which adopts full-stage suction synchronous belt conveying to make paper conveying more stable. The accuracy of front and rear photoelectric positioning coding is within ±0.5 mm.

E) LEDUV curing part: It adopts the world's advanced LEDUV lamp to cure LEDUV ink, which is completely sealed and does not leak light. The conveyor uses a flat belt to inhale all the way, making the paper convey more stable. The LEDUV lamp is arranged vertically, and the number of lamps opened can be selected according to the number of codes.

Save energy. Water-cooled to ensure that the paper solidifies at low temperatures. Using advanced PLC control system, when the paper enters the platform, the light source can be started instantly, and it is in standby state when there is no paper. Compared with traditional UV lamps, it can save more than 70% energy, low power, long life.

F) Waste rejection part: Pneumatic flap-type waste disposal device, which is convenient for customers to cooperate with the installation of waste detection and rejection functions.

G) Receiving section: The bridge is transported by vacuum suction belt to make the paper output more stable. Automatic pneumatic paper-drawing. Automatically descends. When the paper is jammed, the paper feed is automatically stopped, and the paper-receiving tray is turned up to ensure smooth delivery. Can be equipped with a non-stop delivery function.
