Digital Dye Sublimation Textile Printer
McLantis 1.8m/6ft sublimation textile printer is fashionable outlook, stable performance, wide application range and cost effective features.
1) Fashionable Black Master outlook and durable mechanical design
2) Ep son DX5/DX11/5113 print heads for high resolution image output
3) Standard ICC file tested with different print head and our inks for best performance
4) 1800mm large print size meet wide range of print jobs for your business
5) Easy for installation, use and maintain.

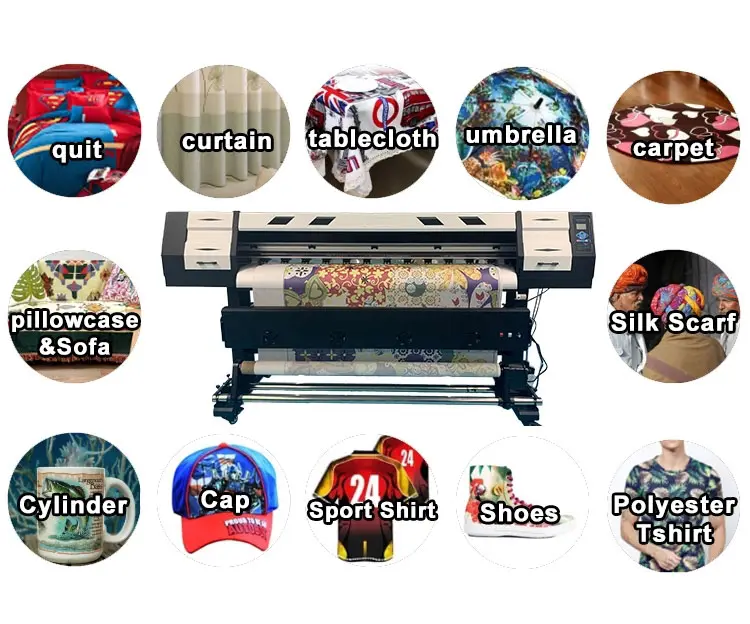

Fast Printing Speed Dye Large Format Sublimation Printer with Epson 5113 Industrial Printhead is suitable for producing advertising and transferring printing in almost of material. It is widely used to eco solvent printing and sublimation printing.

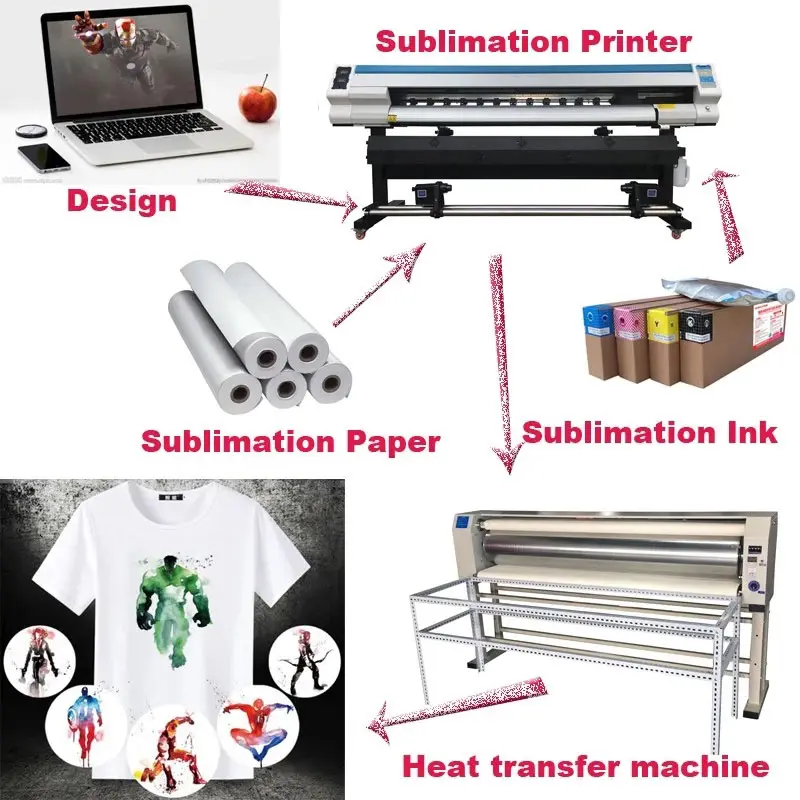

Sublimation printing: Printing pattern on sublimation paper, then transferring pattern on fabric from sublimation paper by Heat transfer machine.
| Model | DIGIMAC JETSUB Digital Sublimation Printer | |
|---|---|---|
| Print Head | Brand | Japan |
| Number | 1 Head | |
| Resolution | 1440DPI | |
| Head Item | 4720 | |
| Nozzle | 400* | |
| Print Speed | Sketch Type 2 Pass | 35sqm/h(4720) |
| Production Type 3 Pass | 28sqm/h(4720) | |
| Precision Type 4 Pass | 20sqm/h(4720) | |
| Quality Type 6 Pass | 12sqm/h(4720) | |
| Operation Environment | Temperature | 15-35 Degree C |
| Humidity | 40-70 RH | |
| Application | Sublimation Printing (XP600 head) | Printing pattern on sublimation paper, then transferring pattern on fabric from sublimation paper by Heat transfer machine. |
| Ink | Ink Type | Sublimation ink |
| Ink Based Color | CMYK | |
| Ink Supply System | Continuous Ink Supply System | |
| Ink Capacity | 1000ml of each bottle | |
| Parameter | Stoving method | Forepart and back two stages heating |
| Interface | 1000 Based-T | |
| Cleaning System | Automatic cleaning device/scraping ink device | |
| Feeding System | Standard automatic feeding system | |
| Drying System | Fan Drying | |
| Optional purchase | INK | Optional |
| Take-up System | Optional | |
| Photoprint | Optional | |
| Operation | RIP Software | Maintop |
| Windows System | All Windows System | |
| Power | Power | 800 W |
| Power Supply | AC220V 50-60HZ | |
| Power Connector | Three-Socket | |
| Package | Package Size | 281.5* |
| Gross Weight/Net Weight | 220kg/180kg | |
Frequently Asked Questions
What are the key specifications of Digital Dye Sublimation Textile Printer?
Print Head: Brand; Number: 1 Head; Resolution: 1440DPI; Head Item: 4720; Nozzle: 400*8; Print Speed: Sketch Type 2 Pass; Production Type 3 Pass: 28sqm/h(4720); Precision Type 4 Pass: 20sqm/h(4720); Quality Type 6 Pass: 12sqm/h(4720); Operation Environment: Temperature; Humidity: 40-70 RH; Application: Sublimation Printing (XP600 head)
