Flexo Plate Making Solvent Recycling Machine
1. Suitable for ordinary and environment protective solvent, rate of recovery 90% or up.
2. Unique strong air cooled system, water cooled system optional.

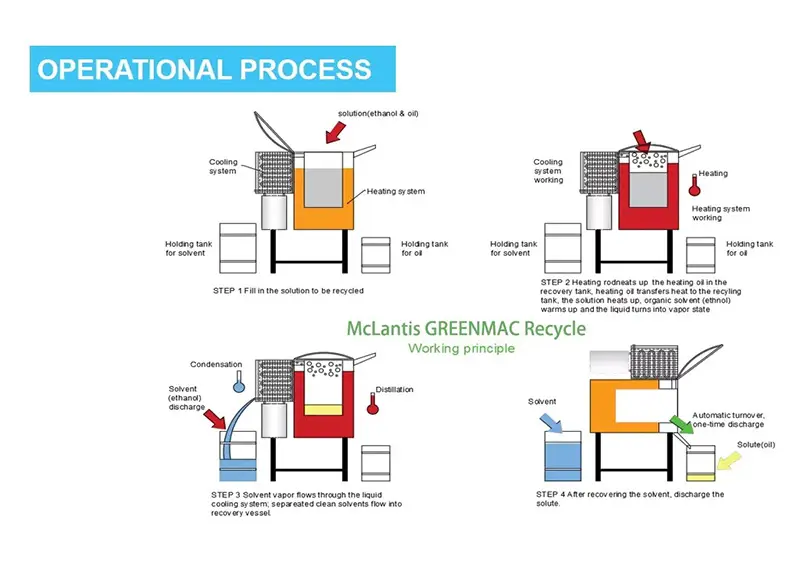

3. Indirect heated by heating-conducting oil, none pressure distillation, safe pressure relief system, preset time of auto stop.
4. Cover and sealing material are all imported.
5. Rotary chemical pouring and lock up.
| ModelGREENMAC | Heating volume (L) | Recycling Bucket Volume (L) | Recovery time (Hr) | Heating temperature (℃) | Voltage | Size (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| 15SRM | 20 | 15 | 2.0 | 50-200 | 220V/50/60Hz 1Ph | 620* | 62 |
| 25SRM | 33 | 25 | 2.5 | 620* | 93 | ||
| 40SRM | 60 | 40 | 3.0 | 650* | 122 | ||
| 60SRM | 87 | 60 | 4.0 | 1150* | 136 | ||
| 80SRM | 110 | 80 | 4.0 | 380V/50/60Hz 3Ph | 1200* | 175 | |
| 100SRM | 170 | 125 | 4.5 | 1500* | 571 | ||
| 200SRM | 333 | 200 | 4.5 | 2100* | 629 | ||
| 500SRM | 670 | 500 | 5.0 | 2500* | 860 |
