Computer to Screen CTS Direct Imaging Machine

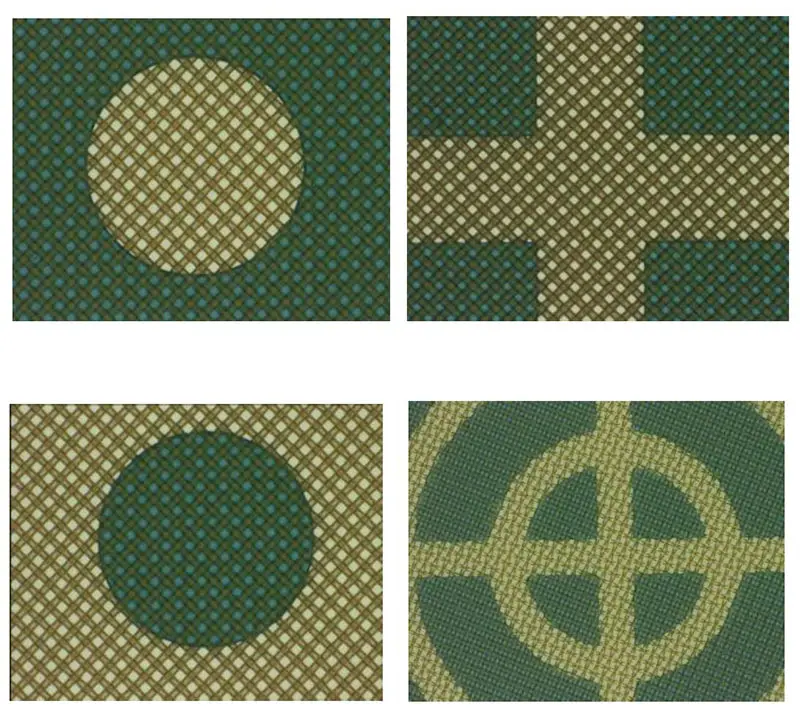

McLantis UV-CTS computer to screen system exhibits wider tonal ranges, better detail and easier printability of halftones and detail. A max. 25400 DPI McLantis UV-CTS system outperforms negative film stencils. Easy screening from 100 LPI to 200 LPI. The accuracy of the image placement on the screen allows for much shorter set-up times on press and color consistency.
Consistent Screen Quality with Automatic Focus; No More Image Seam
A uniquely designed optical system with a +/- 300 micron Depth of focus for consistent exposure quality. Together with the real-time focusing system to overcome the focal length changes of the overall frame, to ensure equal exposure quality of the entire frame.
Maximum High Laser Powers for Varieties of Emulsion and High EOM
With high power laser heads McLantis CTS can consume traditional emulsion with low sensitivity, no need to bind expensive CTS emulsion.
| Model | MACSETTER | |||
|---|---|---|---|---|
| CTS10 | CTS12 | CTS15 | CTS20 | |
| Max. Frame Size(mm) | 1000x1000 | 1200x1300 | 1500x2000 | 2000x3000 |
| Min. Frame Size(mm) | 400x400 | |||
| Max.Image Size(mm) | 900x900 | 1100x1250 | 1400x1900 | 1900x2900 |
| Frame Thickness | 20mm-45mm | |||
| Laser Spot Size | 28um (10um and 20um as optional) | |||
| Repeatability | 5um | |||
| Laser Type | UV LD 405nm | |||
| Laser Power (mass production) | 22W, laser current setting 240mAh | |||
| Laser Power (limit) | 33W, laser current setting 330mAh | |||

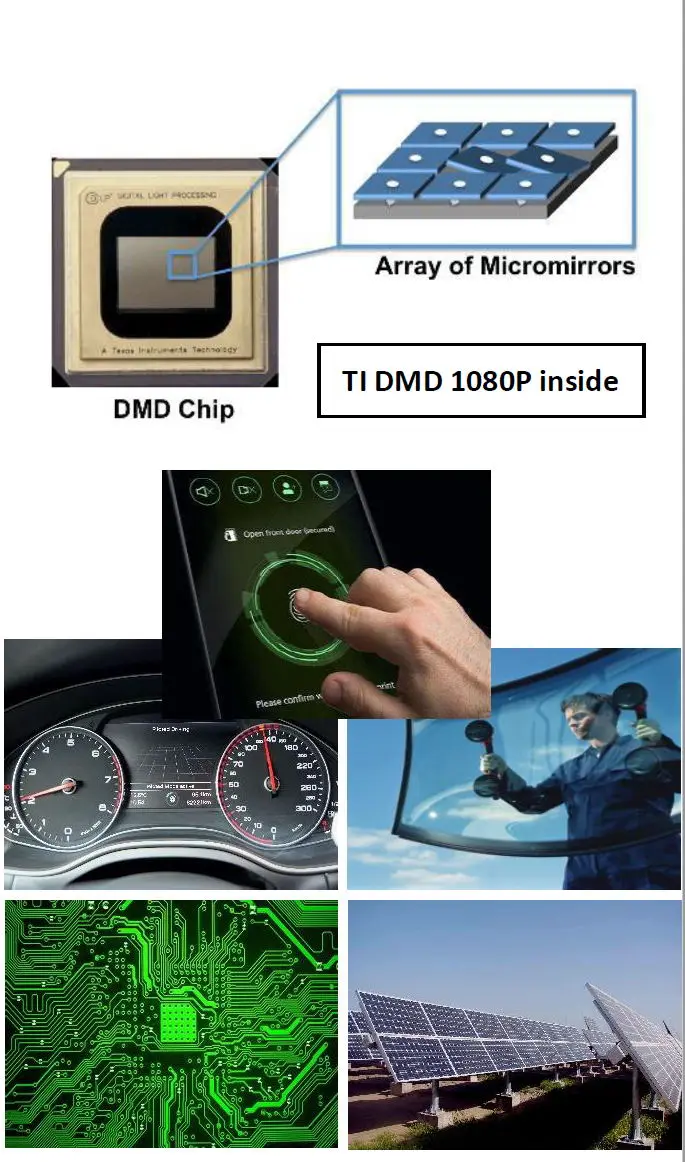

| Imaging Unit | TI DLP technology DMD | |||
| Emulsion over Mesh (EOM) | 6-400um (not include mesh thickness) | |||
| Imaging Time | 20-120 s/m2 (testing with 350 yellow mesh，SBQ emulsion) | |||
| File Resolution | 2540 DPI | |||
| Screening | 133 LPI | |||
| Mode of Focus | Automatic Focus, depth of focus 300um | |||
| Supporting File | 1 bit tiff， Gerber274D/X, DXF | |||
| Equipment Size | 1500* | 1670* | 3992* | 4959* |
| Net Weight | 1500KG | 3500KG | 4800KG | 5500KG |
| Power | Single phase 220V, 50/60Hz, 4KW, compressed air 1L/min | |||
| Optional | High precision industrial camera for alignment (intelligent auto scale), air suction table, software one-click imposition | |||
