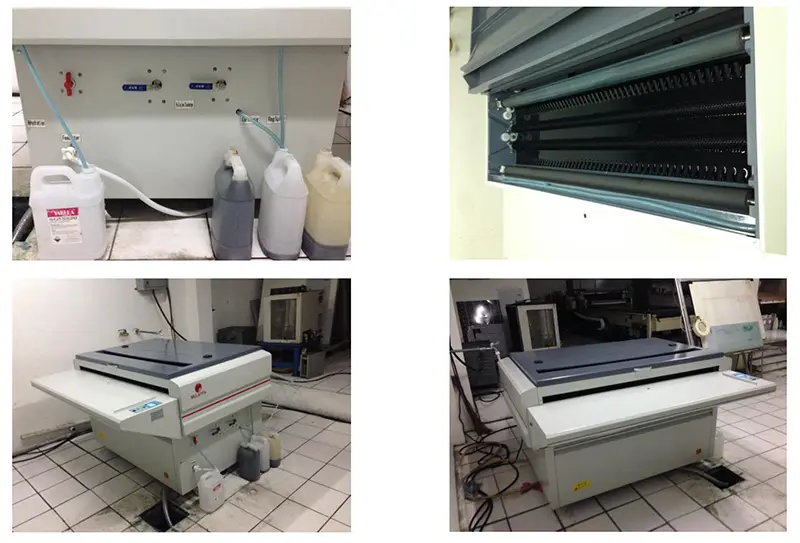

Conventional Offset PS Plate Processor
| Model | PROCEMAC conventional plate processor | |||
|---|---|---|---|---|
| 90PCC | 125PCC | 150PCC | 165PCC | |
| Material | positive and negative PS plate and CTCP plate | |||
| Capacity | 12-90 m/hr | |||
| Plate width (mm) | 900 | 1250 | 1500 | 1650 |
| Min. Plate length(mm) | 300 | 400 | 400 | 400 |
| Plate thickness(mm) | 0.15-0.4 | |||
| Tank content, developer(L) | 45 | 60 | 75 | 100 |
| Tank content, wash(L) | 35 | 45 | 60 | 80 |
| Adjustable temperature, dev | 0 to 40 degree C. adjustable | |||
| Adjustable temperature, dry | normal temperature to 70 degree C. | |||
| Water consumption, max | 8 L/min | 12 L/min | 15 L/min | 20 L/min |
| Diameter of wash brush (mm) | 50 | |||
| Rotary speed of wash brush | 80 rpm | |||
| Filter(um) | 75 | |||
| Water supply | tap water (min. pressure 1 bar) | |||
| Gumming | Roller pressing gumming | |||
| Diameter of roller | 60mm | |||
| Dev. replenishment | 0-1L per plate | |||
| Dev. heating-up rate | 0.5 degree C. per minute | |||
| Horizontal adjustment | Adjustable | |||
| Power supply | 220V 1 phase 50-60Hz | |||
| Power consumption (kwh) | 3.5 | 4.5 | 5 | 6 |
| Voltage fluctuation | within 10% | |||
| Gross weight(kg) | 500 | 650 | 780 | 900 |
| Net weight(kg) | 400 | 550 | 650 | 770 |
| Optional | water wash recycle pump automatic plate stacker plate conveyor | |||
