Flexo Plate Mounting Machine
1. High-strength integrally processed wall frame structure, good working stability and durable.

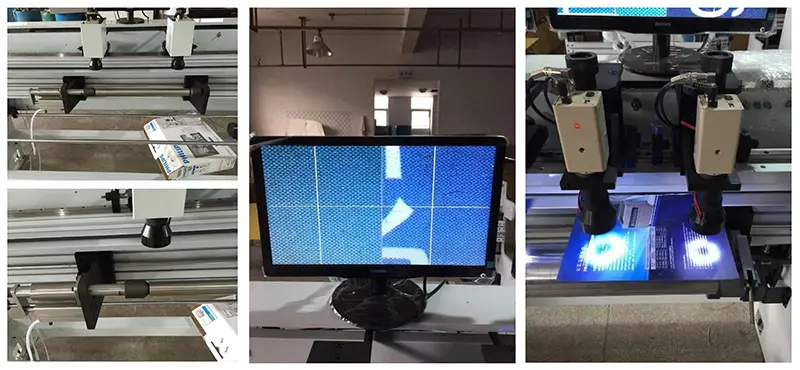

2. The 650-line color high-definition camera, up to 70 times magnification. clear images and high resolution greatly improving the accuracy of placement.
3. The speed reduction motor drive control is adopted for the lifting of the plate roller mechanism, which greatly facilitates the operation of the plate mounting operation.
4. Centralized circuit control for the whole machine, which is easy to operate and has a high degree of automation.
5. The 19-inch high-resolution LCD display with clear and gorgeous images, effectively alleviating the visual fatigue of operators.
| Model | FLEXOMAC | ||||||
|---|---|---|---|---|---|---|---|
| 32FM | 65FM | 100FM | 120FM | 130FM | 150FM | 180FM | |
| Plate Material | Flexo Plate | ||||||
| Plate Thickness | 1-5mm | ||||||
| Plate Cylinder Width Max | 320mm | 650mm | 1000mm | 1200mm | 1300mm | 1500mm | 1800mm |
| Plate cylinder Repeat | 800mm | 800mm | 1200mm | 1200mm | 1200mm | 1200mm | 1200mm |
| Mechanical Size L | 920mm | 1050mm | 1500mm | 1700mm | 1800mm | 2100mm | 2400mm |
| Mechanical Size W | 600mm | 600mm | 600mm | 600mm | 700mm | 700mm | 700mm |
| Mechanical Size H | 1650mm | ||||||
| Weight KG | 160 | 200 | 280 | 320 | 340 | 400 | 460 |
Frequently Asked Questions
What are the key specifications of Flexo Plate Mounting Machine?
Plate Material: Flexo Plate; Plate Thickness: 1-5mm; Plate Cylinder Width Max: 320mm; Plate cylinder Repeat: 800mm; Mechanical Size L: 920mm; Mechanical Size W: 600mm; Mechanical Size H: 1650mm; Weight KG: 160
