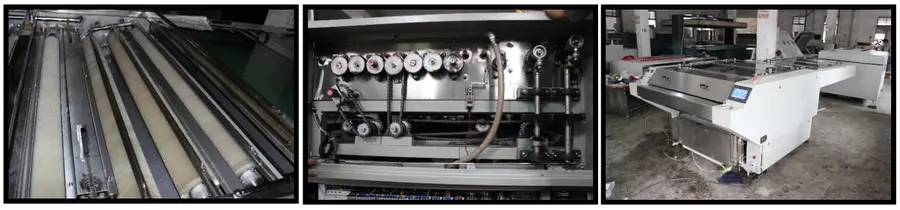

Flexo Plate Wash Out Unit
1. McLantis flexo plate washout unit uses durable Panasonic programmable PLC control system for intelligent control.
2. McLantis washout unit is horizontal brush, rotate brush and round brush cleaning to ensure higher accuracy and convenient and safe operation.
3. McLantis wahsout unit is preset frequently used "1.14mm, 1.7mm, 2.28mm, 3.94mm, 7.0mm" program with different pressure levels, eliminating the tedious manual tuning pressure and instability.
4. Large cycling water tank is equipped with water level safety device, controllable chemical temperature device, auto chemical replenish device and safety filter system. McLantis washout unit ensures the plate washing continuity and reliability.
5. When washing the plate, place the plate in the plate feeder and select the plate thickness. Then press start, McLantis plate washout unit will perform "plate enter - wash - clean - pre-drying - stop" automatically.
| Model | FLEXOMAC McLantis Online Plate Washing Unit | ||||||
|---|---|---|---|---|---|---|---|
| MCE55WU | MCE66WU | MCE76WU | MCE90WU | MCE106WU | MCE116WU | MCE135WU | |
| Max plate width (mm) | 550 mm | 660mm | 760mm | 900mm | 1060mm | 1160mm | 1350mm |
| Plate WashPlate Dry | 380V,50Hz 4Kw | 380V,50Hz 4.3Kw | 380V,50Hz 5Kw | 380V,50Hz 5.5Kw | 380V,50Hz 6Kw | 380V,50Hz 6.2Kw | 380V,50Hz 7.5Kw |
| Dimension | 1480× | 1650× | 1850× | 2250× | 2350× | 2400× | 2650× |
| Weight | 500KG | 600KG | 700KG | 750KG | 800KG | 850KG | 1100KG |
Frequently Asked Questions
What are the key specifications of Flexo Plate Wash Out Unit?
MCE55WU: MCE66WU; Max plate width (mm): 550 mm; Plate WashPlate Dry: 380V,50Hz 4Kw; Dimension: 1480×1185 ×1100; Weight: 500KG
