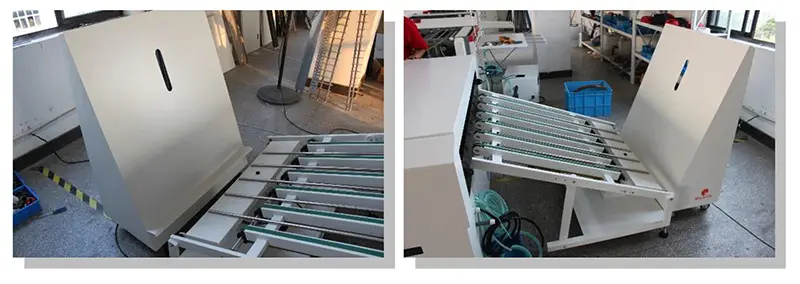

CTP Machine Plate Stacker
1. Compatibility and Adjustability
Program control with infrared automatic detection, compatible with any processor without wire link. Automatic fast-slow adjusting, stepless speed adjusting on McLantis plate stacker.
2. Safety Assured and Efficiency
Emergency switch on McLantis plate stacker assures no risk at all. Mass carrying volume, capable of packing more than 100 plates.
3. Custom Size Designed
| Model | STAMAC | ||
|---|---|---|---|
| 90S | 125S | 145S | |
| Plate Size Max (mm) | 900× | 1250x1450 | 1450x1700 |
| Plate Size Min (mm) | 400 | ||
| Plate Thickness (mm) | 0.15-0.5 | ||
| Transporting Speed | 400 | 500 | 500 |
| Stacking Speed | 100-150s | ||
| Power Supply | 220V single phase 50/60Hz 2A | ||
| Weight | 200 | 250 | 300 |
| Packing size(mm) | 1250x1250x1350 | 1500x1800x2000 | 1800x2000x2200 |
Recommended
Frequently Asked Questions
What are the key specifications of CTP Machine Plate Stacker?
Plate Size Max (mm): 900×1230; Plate Size Min (mm): 400; Plate Thickness (mm): 0.15-0.5; Transporting Speed: 400; Stacking Speed: 100-150s; Power Supply: 220V single phase 50/60Hz 2A; Weight: 200; Packing size(mm): 1250x1250x1350
