Violet CTP Plate Processor
1. Automatic PLC control, comprehensive McLantis violet CTP plate processors with stable performance.
2. Steam line body with European standard engineering plastic tank.
3. CNC precise processing.
4. European made roller, corrosion proof and age resistant, easy installation and uninstallation.

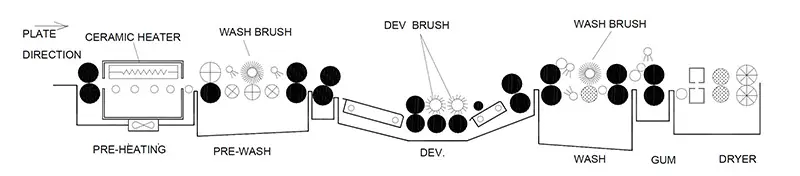

5. Wide submission structure, pre-bake accelerates the process of developing, washing, gumming and drying.
6. Automatic standby and slow operation, water-saving and electronic-saving with auto replenish system of McLantis processors.
7. Auto baking and cooling on McLantis violet CTP plate processors ensures precise temperature within
8. Double wash device and reverse process function on McLantis violet CTP plate processors.
| Model | PROCEMAC | |
|---|---|---|
| 90PPL | 125PPL | |
| Material | Violet laser photopolymer or silver halide CTP plate | |
| Processing speed | 40 -120 cm/min | |
| Plate width (mm) | 900 | 1250 |
| Min. Plate length(mm) | 450 | 450 |
| Plate thickness(mm) | 0. 15-0. 3 | |
| Tank content, developer(L) | 50 | 68 |
| Tank content, wash(L) | 13. 5 | 20 |
| Adjustable temperature, pre-heat | 70-140 degree C | |
| Adjustable temperature, dev | 0 to 40 degree C. adjustable | |
| Adjustable temperature, dry | normal temperature to 80 degree C. | |
| Replenishment System | 0-1L per plate | |
| Dev. heating-up rate | 0. 5 degree C. per minute | |
| Power supply | 220V single phase 50-60Hz | |
| Power consumption (kwh) | 3. 5 | 4. 5 |
| Voltage fluctuation | within 10% | |
| Gross weight(kg) | 500 | 780 |
| Net weight(kg) | 420 | 650 |
Frequently Asked Questions
What are the key specifications of Violet CTP Plate Processor?
Material: Violet laser photopolymer or silver halide CTP plate; Processing speed: 40 -120 cm/min; Plate width (mm): 900; Min. Plate length(mm): 450; Plate thickness(mm): 0. 15-0. 3; Tank content, developer(L): 50; Tank content, wash(L): 13. 5; Adjustable temperature, pre-heat: 70-140 degree C; Adjustable temperature, dev: 0 to 40 degree C. adjustable; Adjustable temperature, dry: normal temperature to 80 degree C.; Replenishment System: 0-1L per plate; Dev. heating-up rate: 0. 5 degree C. per minute
