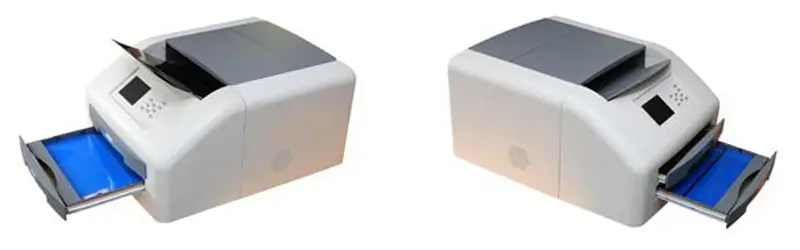

Medical Dry Film Laser Imager
1. McLantis medical film printer offers superior image quality and value for CR/DR and multi-modality environments.
2. High speed image processing, networking and spooling are standard.
| Printing technique | direct thermal imaging(easy daylight loading) |
|---|---|
| geometrical | 320dpi (12.6pixel/mm) |
| film throughput | 60sheets/hour(14* |
| resolution | 12bit(4096 gradation) |
| film supply tray | 2 supply trays,100 sheets per supply tray |
| film output tray | 1 output tray, 50 sheets per output tray |
| film size | 8* |
| film type | medical thermal film (blue or clear base) |
| film input cassette | all the film prepackaged in factory sealed input cassette |
| port | 10/100base-T Ethemet(RJ-45) |
| interface | dicom |
| image format | dicom |
| image quality | use the built-in densitometer automatic calibration |
| image control | contrast/grayscale/polar/ratate/saturation/scale |
| control panel | light background LCD display,display online, alarm, fault and state |
| key switch | power supply and menu navigation button |
| processor | intel |
| internal memory | 2 GB |
| disk capacity | 320 GB |
| power requirements | auto ranging 100-240V~50/60 HZ |
| weight | 40kg |
| size (mm* | 410* |
| work temperature | 15-30°C |
| work humidity | 10%-70% |
| optimum temperature | 22.2°C |
| humidity | 10%-80% |
| storage temperature | -22 to 50°C |
Frequently Asked Questions
What are the key specifications of Medical Dry Film Laser Imager?
geometrical: 320dpi (12.6pixel/mm); film throughput: 60sheets/hour(14*17), 90sheets/hour(8*10); resolution: 12bit(4096 gradation); film supply tray: 2 supply trays,100 sheets per supply tray; film output tray: 1 output tray, 50 sheets per output tray; film size: 8*10inch,14*17inch,and any size between them; film type: medical thermal film (blue or clear base); film input cassette: all the film prepackaged in factory sealed input cassette; port: 10/100base-T Ethemet(RJ-45); interface: dicom; image format: dicom; image quality: use the built-in densitometer automatic calibration
