Inkjet PCB Panel Legend Printer
McLantis direct PCB legend printing with digital control technology for online equipment, subverting the traditional screen printing PCB legend manufacturing process: user load the gerber file, relying on digital control technology, the legends are directly printed on the PCB hard board and FPC soft board through the UV-LED Drying means spraying and drying, eliminating the traditional silk screen plate making and developing and exposure procedures, bringing high resolution, high efficiency and low cost products to customers.
Load-print-unload, three steps to make ultra high efficiency and cost saving
Large operation table.

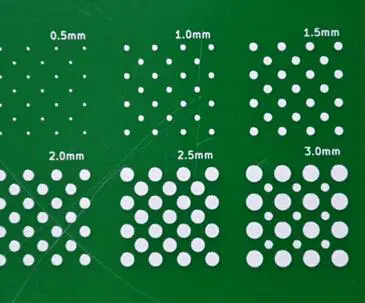

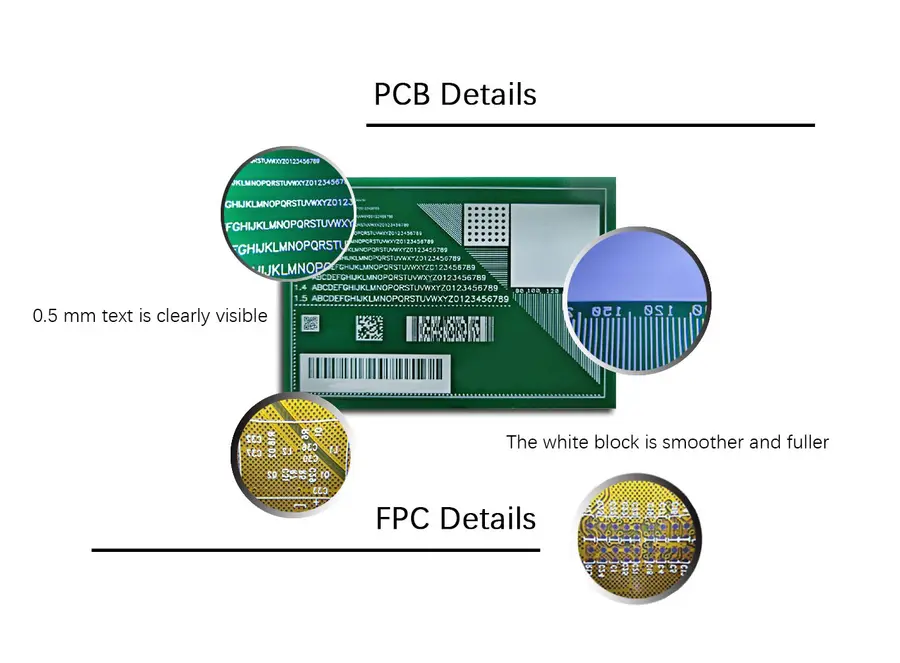

High resolution Printing.

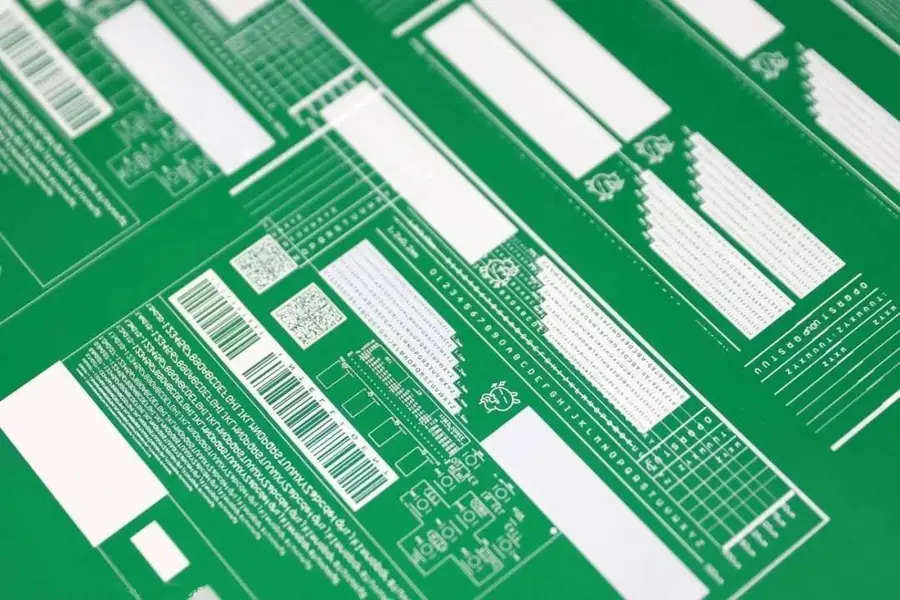

Automatic label printing. Custom serialization, support all kinds of bar-coding and serializing.
| Model | DIGIMAC-PCBJET |
|---|---|
| Maximum Printing Size | 630mm x 720mm |
| PCB Thickness | 4-340 mil (0.1-8.5mm) |
| Print Head | KM1024i Samba G3L Ricoh G5s |
| Min. Line Width | 3mil (75um) |
| Min. Size of Legend | 500um x 400um |
| Max. Resolution | 1440dpi x 1440dpi |
| Drop Size | 13pl |
| Max. Printing Speed | 600mm/S |
| Ink | UV ink |
| Cure Method | LED |
| Alignment Method | 3 or 4 point CCD Camera |
| Printing Type | Fast: 8 seconds (1440x720 dpi)Standard: 13 seconds (1440x1800 dpi)High-Precision: 18 seconds (1440x2400 dpi) |
| Machine Size | 2017mm x 2503mm x 1672mm |
Frequently Asked Questions
What are the key specifications of Inkjet PCB Panel Legend Printer?
Maximum Printing Size: 630mm x 720mm; PCB Thickness: 4-340 mil (0.1-8.5mm); Print Head: KM1024i Samba G3L Ricoh G5s; Min. Line Width: 3mil (75um); Min. Size of Legend: 500um x 400um; Max. Resolution: 1440dpi x 1440dpi; Drop Size: 13pl; Max. Printing Speed: 600mm/S; Ink: UV ink; Cure Method: LED; Alignment Method: 3 or 4 point CCD Camera; Machine Size: 2017mm x 2503mm x 1672mm
