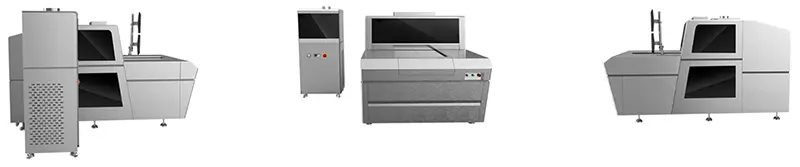

LDI-E series LDI Laser Direct Imager
- McLantis PCB laser directing imaging system is designed for high quality print circuit board
- It saves on labor and mask cost for customer
- It reduces complexity by removing one process step of mask preparation
- The better performance with overlay and CD uniformity control has made the systems the best solution for imaging mass production of HDI and flex applications
- McLantis PCB laser directing imaging system can expose PCB up to 630 x 730mm and with the resolution down to 20um/1mil
| Model | MAC-DPB-DI50E | MAC-DPB-DI30E | MAC-DPB-DI20E |
|---|---|---|---|
| Light Source | Fiber Coupled Laser + DMD | ||
| Laser Power | 24 Watts | ||
| Wave Length | 395nm - 415nm UV sensitive | ||
| Imaging Material | Conventional dry film, PCB ink, LDI dry film | ||
| Supported Substrate | Max: 630x730mm Min: 250x250mm | ||
| Substrate Thickness | 0.05mm to 5mm | ||
| Minimum Line Width / Line Distance | 50um / 50um | 30um / 30um | 20um / 20um |
| Line Width Accuracy | Within 4um | ||
| Depth of focus | 300um | ||
| Layer Alignment Accuracy | 20um | ||
| Outer Layer Alignment Accuracy | 10um | ||
| Repeat Accuracy | 2um | ||
| File Format | Gerber274X, Gerber274D, ODB++ | ||
| Productivity (535x610mm, 20 mj/cm2) | 39s / side | 39s / side | 42s / side |
| Machine dimension | 2800x1700x1590mm | ||
| Machine Weight | 3500 KG | ||
