Collimated Light Exposure Machine
1. Strong body structure
The load-bearing part of the machine body is welded by a 50x50x3mm frame. The frame structure and high structural strength ensure the long-term durability of the machine.
2. High precision of light source

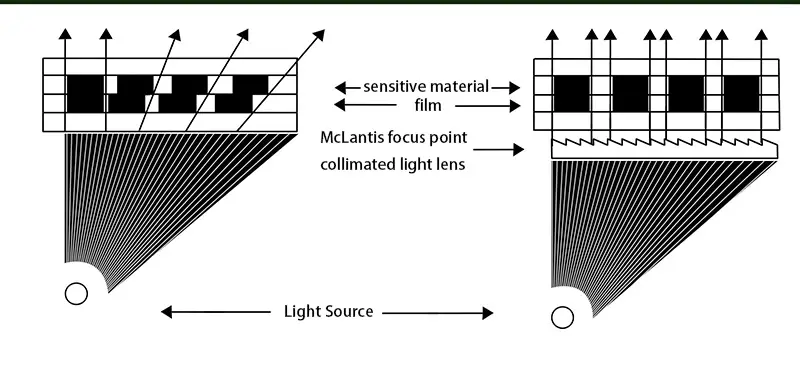

By using a specially designed parallel light source, the incident half angle and oblique angle of parallel light are less than or equal to 2 degrees, and the light uniformity can reach more than 95%.
3. Efficient cooling to avoid deformation of the design
The machine comes with an ice-water cooling system and a reasonable air duct design to avoid deformation of the design.
4. Efficient vacuum
The rubber skin winding design makes it easy to pick and place the workpiece; the soft squeeze roller can quickly extrude the air between the rubber and the glass, thereby reducing the amount of air in the vacuum cavity and quickly completing the vacuum action.
5. Energy saving
The high-reliability UV electronic power supply is used to supply power to the light source, the power factor reaches more than 96%, and the power conversion efficiency is high; the light energy can be steplessly adjusted, which greatly improves the service life of the lamp.
| Model | EXPOMAC1215CSL | EXPOMAC1417CSL | EXPOMAC1722CSL |
|---|---|---|---|
| Glass Platform dimensions | 1200x1500mm | 1400x1700mm | 1700x2200mm |
| Maximum screen frame area | 1000x1300mm | 1200x1500mm | 1400x1900mm |
| Machine dimensions | Length 1600X Width 1290X Height 1985mm | Length 1800X Width 1490X Height 1985mm | Length 2200X Width 1890X Height 1985mm |
| Exposure method | Second exposure mode and energy exposure mode | ||
| Parallel light area | Parallel light irradiation area 900X1200mm | ||
| Exposure accuracy | With film and high-resolution photosensitive coating, 25 micron line width can be achieved | ||
| Light uniformity | The light uniformity within the effective area of the film is not less than 95% | ||
| Maximum vacuum degree | -730mmHg within 1000 meters above sea level | ||
| Screen pattern deviation | With film and high-resolution photosensitive adhesive, ±30 microns can be achieved (200 mm screen frame test conditions) | ||
| Controller | Programmable Logic Controller PLC | ||
| Vacuum pump | 1 / 4HP oil-free silent maintenance-free vacuum pump | ||
| UV lamp | Japanese instant light 3kw lamp | ||
| Power requirements | AC220V 60A 50/60Hz power cord over 6 mm2 | ||
| Rubber | with air guide pattern, easy to replace the rubber | ||
| UI | 7-inch touch screen | ||
| Pressure regulating valve | Adjust vacuum pressure | ||
Frequently Asked Questions
Which models of Collimated Light Exposure Machine are available?
EXPOMAC1215CSL / EXPOMAC1417CSL / EXPOMAC1722CSL
What are the key specifications of Collimated Light Exposure Machine?
Glass Platform dimensions: 1200x1500mm; Maximum screen frame area: 1000x1300mm; Machine dimensions: Length 1600X Width 1290X Height 1985mm; Exposure method: Second exposure mode and energy exposure mode; Parallel light area: Parallel light irradiation area 900X1200mm; Exposure accuracy: With film and high-resolution photosensitive coating, 25 micron line width can be achieved; Light uniformity: The light uniformity within the effective area of the film is not less than 95%; Maximum vacuum degree: -730mmHg within 1000 meters above sea level; Screen pattern deviation: With film and high-resolution photosensitive adhesive, ±30 microns can be achieved (200 mm screen frame test conditions); Controller: Programmable Logic Controller PLC; Vacuum pump: 1 / 4HP oil-free silent maintenance-free vacuum pump; UV lamp: Japanese instant light 3kw lamp
